Usage

Rich Text

RichText created by UMarkdown can be used together with:

• TextMeshPro components
• UIElements.Label elements
• Debug.Log outputs
• Any other Unity component that supports proper rich text formatting.

C# Code

You can convert Markdown content into Unity rich text strings using the following method:

public void ConvertMarkdownToRichText() {
    var richText = UnityMarkdown.ToRichText("My **Markdown** Content");
    Debug.Log(richText);
}

Additionally, you can customize the conversion process by providing a custom style:

var richText = UnityMarkdown.ToRichText("My **Markdown** Content",
    style: new RichTextMarkdownStyle { FontSize = 18 }
);

Visual Element

The MarkdownVisualElement has two different modes in which it can be used:

• ExtendedMode=true: In this mode, the visual element will render the Markdown content using multiple child visual elements. This allows for better styling and interaction with the content but may have a higher performance overhead.
  The ElementFactory will then be used to create the individual visual elements.
• ExtendedMode=false: In this mode, the visual element will convert the Markdown content into a single rich text string and display it using a single element. This mode is generally faster but may have limitations in terms of styling and interaction.

C# Code

You can create a new markdown element via C# code like shown below:

public void CreateMarkdownElement() {
    var element = UnityMarkdown.ToVisualElement("My **Markdown** Content");
    Add(element);
}

Additionally, the style and element factory can be configured using the optional parameters:

var element = UnityMarkdown.ToVisualElement("My **Markdown** Content",
    style: new RichTextMarkdownStyle { FontSize = 18 },
    factory: new DefaultMarkdownVisualElementFactory()
);

This will always use the extended mode. If you want to use the non-extended mode, you can manually create MarkdownVisualElement instead or use the UnityMarkdown.ToRichText method, together with your own Label elements.

UXML Editor

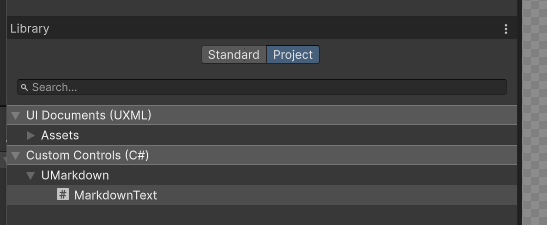

You can create a new markdown element by adding the MarkdownText element for the custom controls section in the UXML editor, like shown below:

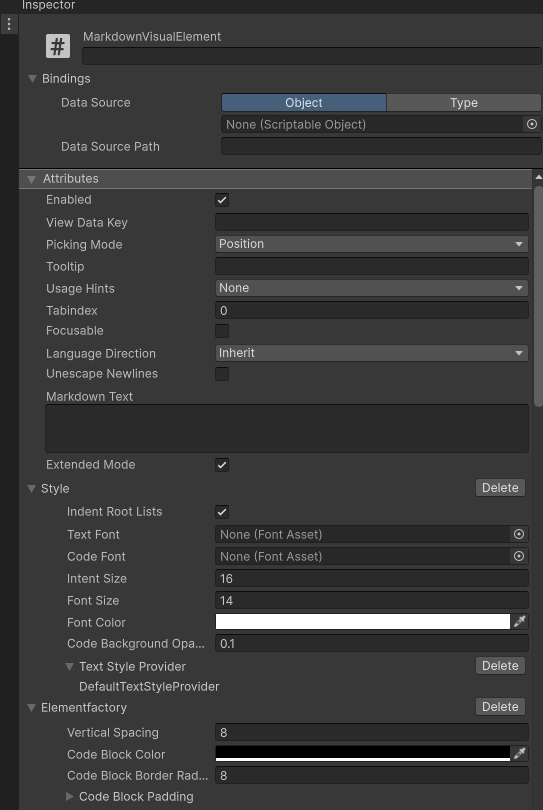

The attribute list of the element will expose all (editor) available options.

Be careful with Newlines in UXML

The UXML editor does not properly support newlines. If they are required for your usage, consider applying them via C# code or use Unescape Newlines together with \n.
